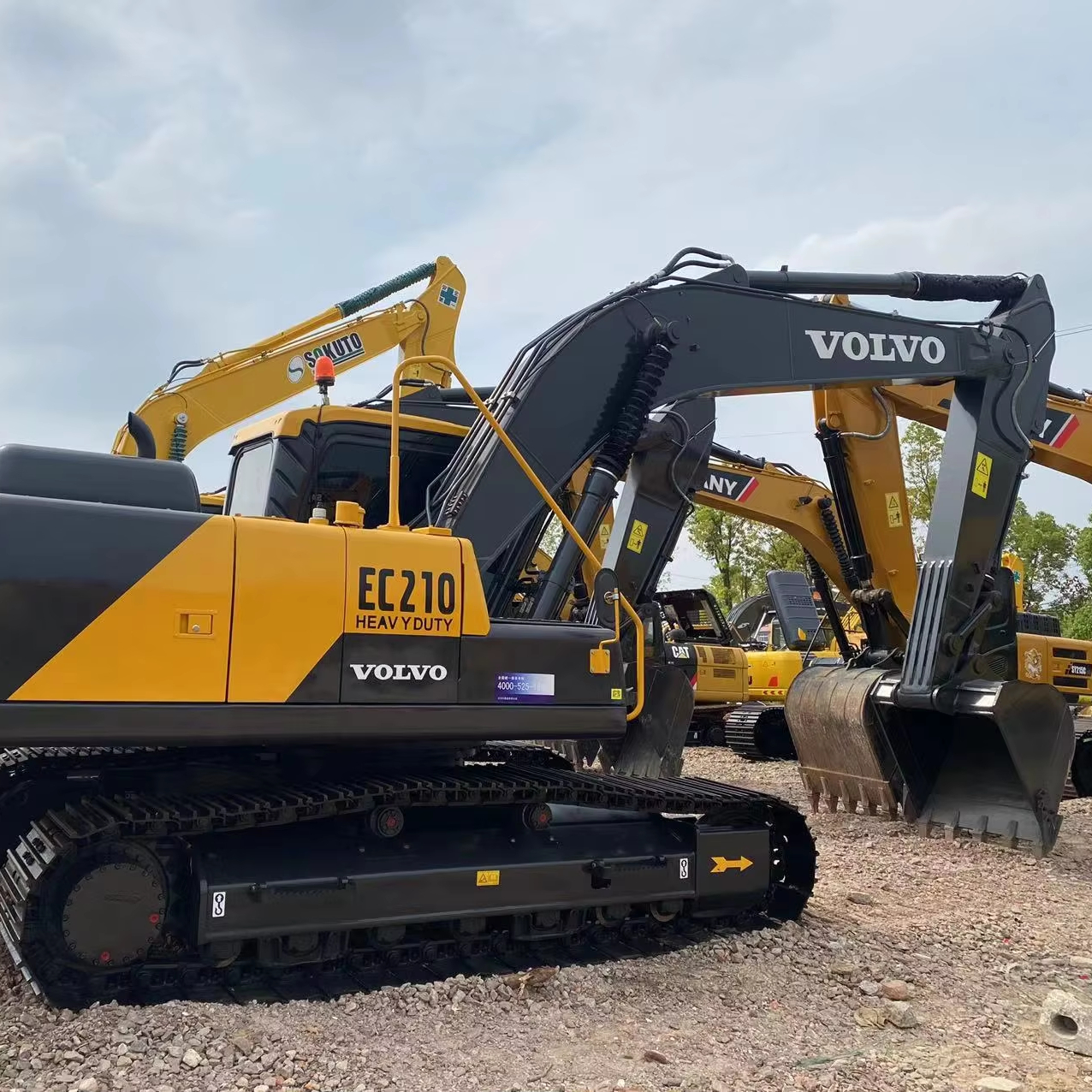

Refurbished Volvo EC210 Excavator

The Volvo EC210 is a reliable and high-performance excavator known for its robust design, fuel efficiency, and versatile capabilities. Whether you're engaged in digging, lifting, trenching, or grading, the EC210 is a reliable partner for construction, mining, and agricultural operations. For businesses seeking to reduce capital expenses, opting for a refurbished Volvo EC210 can provide an excellent opportunity to acquire this top-tier machinery at a fraction of the cost of a new unit.

Honestly, it's almost impossible to buy a brand new excavator from China. They either don't exist or are made in China. If a Chinese seller tells you their Caterpillar/Komatsu/Volvo/Kobelco/Hitachi is brand new, they're lying. Therefore, a refurbished excavator is your best bet.

Here are the detailed specifications for a refurbished Volvo EC210BLC excavator:

Operating Weight and Dimensions

  • Operating Weight: 21,000–22,500 kg
  • Transport Length: ~9.7–10.0 meters
  • Transport Width: ~2.9–3.0 meters
  • Transport Height: ~3.0–3.2 meters
  • Tail Swing Radius: ~3.0–3.2 meters
  • Ground Clearance: ~440–470 mm
  • Track Width: 600 mm standard

Engine and Powertrain

  • Engine Model: Volvo D6D EBE2 (Tier 2 compliant)
  • Rated Power Output: ~110–118 kW (148–158 hp) @ 1,800 rpm
  • Maximum Torque: ~750–800 Nm
  • Fuel Tank Capacity: ~400–450 liters
  • Travel Speed: 3.0–5.0 km/h
  • Swing Speed: ~11 rpm
  • Gradeability: Up to 35°

Hydraulic System

  • Main Pump Type: Variable displacement axial piston pumps
  • Flow Rate: ~2 × 220–240 L/min
  • System Pressure: Up to 34.3 MPa
  • Hydraulic Oil Capacity: ~300–350 liters
  • Boom/Arm/Bucket Priority: Load-sensing with flow sharing
  • Regeneration System: Enhances simultaneous operations and reduces cavitation

Performance Metrics

  • Bucket Capacity: 0.8–1.2 m³ (SAE heaped)
  • Max Digging Depth: ~6.7–6.9 meters
  • Max Reach (Horizontal): ~10.0–10.3 meters
  • Max Dump Height: ~6.5–6.7 meters
  • Bucket Digging Force: ~140–150 kN
  • Arm Digging Force: ~100–110 kN

Cab and Operator Features

  • Cab Type: ROPS/FOPS certified
  • Display: Contronics system with diagnostics and fuel tracking
  • Controls: Pilot-operated joysticks with auxiliary hydraulic circuit
  • Comfort: Air suspension seat, climate control, low vibration cab
  • Visibility: Rear-view camera, wide glass area, LED work lights

Smart Features and Efficiency

  • Fuel Efficiency:
    • Auto idle and engine shutdown
    • Load-sensing hydraulics
    • Work mode selector: I (Idle), F (Fine), G (General), H (Heavy), P (Power Max)
  • Emissions Control: Tier 2 compliant (no DPF/SCR)
  • Telematics Ready: Volvo CareTrack (optional on later refurbishments)

Attachments Compatibility

  • Standard Bucket: 0.8–1.2 m³
  • Optional Tools: Hydraulic breaker, demolition shear, compactor, ripper
  • Quick Coupler: Hydraulic or manual options available

Refurbishment Scope

Refurbished EC210 units typically include:

  • Engine Overhaul: Turbocharger, injectors, seals, cooling system
  • Hydraulic Restoration: Pump recalibration, valve block testing, hose replacement
  • Electrical Diagnostics: Monitor, sensors, wiring harness
  • Cab Reconditioning: Seat, joysticks, HVAC, repainting
  • Structural Repairs: Boom/bucket welding, bushing replacement, undercarriage rebuild

Overview of the Volvo EC210 Excavator

The Volvo EC210 is part of Volvo's renowned EC series of hydraulic excavators. Designed to provide excellent performance while being easy to operate, the EC210 is a versatile machine suited for both urban and rural construction sites. With a balance of powerful hydraulics, fuel-efficient engines, and operator comfort, it delivers exceptional value for projects requiring a reliable machine capable of withstanding tough working conditions.

Key Specifications of the Volvo EC210

  • Operating Weight: Around 21,000 kg (46,300 lbs)

  • Engine Power: 129 kW (173 hp)

  • Max Digging Depth: Up to 6.7 meters (22 feet)

  • Max Reach: Approximately 9.8 meters (32 feet)

  • Bucket Capacity: Between 0.8 to 1.2 cubic meters (28.3–42.3 cubic feet)

  • Fuel Tank Capacity: About 400 liters (105 gallons)

  • Travel Speed: Up to 5.5 km/h (3.4 mph)

These specifications make the EC210 ideal for a wide variety of applications, including excavation, grading, trenching, and lifting. Its optimized engine and hydraulic systems provide maximum performance with minimal fuel consumption, making it a cost-effective choice for heavy-duty operations.

Engine and Performance Efficiency

The Volvo EC210 is powered by the Volvo D6D engine, which is renowned for its reliability and fuel efficiency. It delivers optimal performance for the machine’s operating weight, providing enough power to handle tough excavation tasks while minimizing fuel consumption.

  • Fuel Efficiency: The engine is engineered to provide impressive fuel efficiency without compromising on performance. This feature is critical for long-duration projects, where fuel costs can quickly add up. The EC210 is designed to lower overall operating costs by reducing the frequency of refueling and the overall consumption rate.

  • High Torque Output: With a torque rating designed to meet heavy-duty excavation needs, the EC210 can work in even the toughest conditions without bogging down. The engine’s consistent power delivery ensures reliable performance when digging, lifting, or handling heavy materials.

Hydraulic System and Performance

The Volvo EC210 utilizes a load-sensing hydraulic system, which ensures high efficiency by adjusting the hydraulic flow according to the load being handled. This feature not only optimizes performance but also improves fuel consumption, making the machine more cost-efficient.

  • Hydraulic Power: The hydraulics in the EC210 offer excellent digging and lifting capabilities. The machine is capable of handling a variety of attachments, from standard buckets to specialized tools like breakers and augers, enhancing its versatility.

  • Enhanced Cycle Times: The hydraulic system is designed to allow for faster and smoother operations, reducing the cycle time for various tasks such as digging, loading, and lifting. This results in improved productivity, making the EC210 an excellent machine for time-sensitive projects.

  • Load-Sensing Hydraulics: This system automatically adjusts the hydraulic flow based on load size, ensuring the machine operates at maximum efficiency while providing just the right amount of hydraulic power.

Durability and Construction

Volvo excavators are known for their robust build quality, and the EC210 is no different. Designed to withstand harsh environments and tough working conditions, this excavator offers long-lasting performance, even in demanding applications such as heavy lifting and deep digging.

  • Reinforced Undercarriage: The EC210’s undercarriage is built to resist wear and tear, especially when working in tough ground conditions. This feature helps to extend the lifespan of the machine, reducing downtime for maintenance and repairs.

  • Structural Integrity: The frame and boom of the EC210 are designed for durability, offering high resistance to cracking and deformation. These elements are engineered to handle heavy loads and tough tasks, ensuring the machine remains operational for years.

  • Wear-Resistant Components: The EC210 is equipped with high-strength materials in areas prone to wear, including the bucket, arm, and hydraulic cylinders. This ensures the machine can handle abrasive environments without compromising on performance.

Operator Comfort and Safety

Volvo understands that operator comfort and safety are essential for long-term productivity. The EC210 is designed with an ergonomic, user-friendly cabin that enhances operator comfort, reduces fatigue, and improves overall safety.

  • Spacious Cab: The cabin in the EC210 offers ample space for operators, with a comfortable seat and excellent visibility. Large windows ensure that the operator has a clear view of the work area, which is crucial for safety and precision in operations.

  • User-Friendly Controls: The controls in the EC210 are intuitive and designed for ease of use. The joystick control system is responsive, providing the operator with better control over the machine’s movements, resulting in smoother operations.

  • Safety Features: The EC210 comes equipped with multiple safety features, such as a reinforced ROPS (Roll-Over Protection Structure) and FOPS (Falling Object Protection Structure), ensuring operator safety in the event of a rollover or debris falling from height.

Why Choose a Refurbished Volvo EC210?

Opting for a refurbished Volvo EC210 allows operators to enjoy all the benefits of this reliable excavator at a significantly lower price point than purchasing a new one. Refurbished machines undergo thorough inspection and maintenance to ensure they perform as well as new machines, providing great value for money.

  • Cost-Effective: Refurbished Volvo EC210 excavators are typically priced 30-50% lower than new models, making them an attractive option for businesses looking to maximize value while minimizing upfront costs.

  • Comprehensive Refurbishment Process: Refurbished models undergo an in-depth inspection, where the engine, hydraulics, undercarriage, and other key components are checked, repaired, or replaced as necessary. This ensures the machine is brought up to factory standards, delivering the same performance as a new unit.

  • Warranty and Support: Many refurbished machines come with a warranty that covers key components and systems, offering peace of mind to buyers. Additionally, parts availability and after-sales service ensure continued support throughout the life of the machine.

  • Sustainability: Choosing a refurbished excavator is also an environmentally responsible decision. By extending the life of existing machines, you reduce the demand for new resources and help reduce waste.

Maintenance Tips for the Volvo EC210

To keep your Volvo EC210 in top condition, it is essential to follow regular maintenance practices:

  • Engine Maintenance: Change engine oil regularly, and ensure that the air and fuel filters are replaced as needed. Check for any leaks in the fuel and cooling systems.

  • Hydraulic System: Inspect hydraulic hoses, pumps, and cylinders for leaks and cracks. Change hydraulic oil and filters according to the manufacturer's recommendations to maintain optimal hydraulic performance.

  • Undercarriage Inspection: Regularly check the tracks for wear and adjust tension as needed. Clean the undercarriage to prevent dirt buildup, which could lead to premature wear.

  • Cab Maintenance: Ensure the cab is kept clean and the air conditioning system is working correctly to keep operators comfortable. Regularly inspect safety features such as the seat belt and ROPS/FOPS structures.

Conclusion

The Volvo EC210 is a powerful, reliable, and cost-effective solution for a variety of heavy-duty tasks, offering a balance of performance, durability, and operator comfort. With its fuel-efficient engine, hydraulic power, and strong construction, it is well-suited for demanding jobs in construction, demolition, and other industries. Choosing a refurbished Volvo EC210 allows businesses to take advantage of all these benefits at a more affordable price, without sacrificing performance or quality. Regular maintenance ensures that the excavator remains a valuable asset for many years, making it a smart investment for any heavy equipment fleet.
