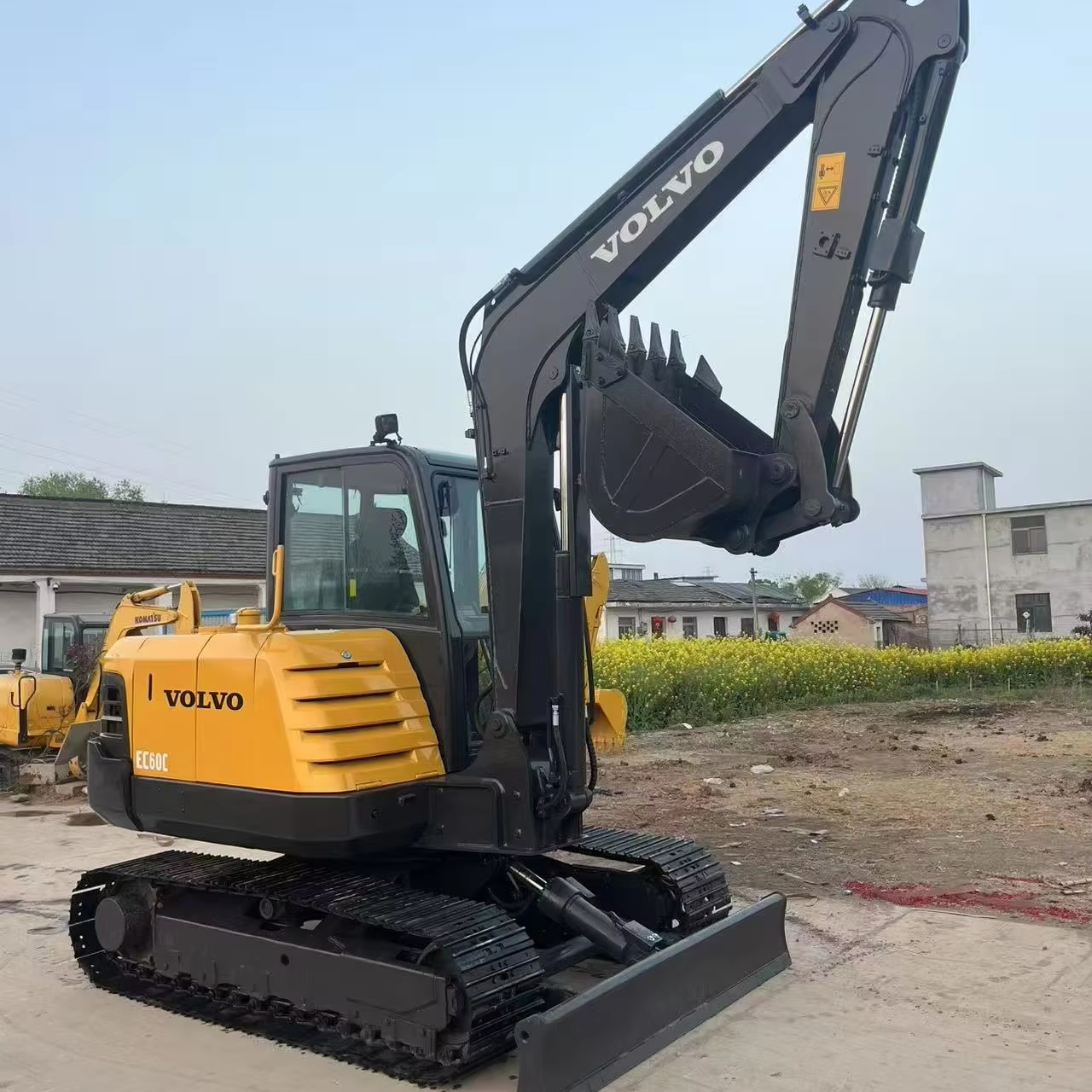

Refurbished Volvo EC60 Excavator

The Volvo EC60 is a highly efficient and durable compact hydraulic excavator designed for a variety of construction, landscaping, and utility tasks. Known for its impressive performance, fuel efficiency, and low operating costs, the EC60 is a valuable asset for contractors working in tight spaces or on projects that require precision and maneuverability.

Honestly, it's almost impossible to buy a brand new excavator from China. They either don't exist or are made in China. If a Chinese seller tells you their Caterpillar/Komatsu/Volvo/Kobelco/Hitachi is brand new, they're lying. Therefore, a refurbished excavator is your best bet.

Here are the detailed specifications for a refurbished Volvo EC60D excavator:

Operating Weight and Dimensions

  • Operating Weight: 5,700–6,000 kg
  • Transport Length: ~5.65 meters
  • Transport Width: ~1.98 meters
  • Transport Height: ~2.55 meters
  • Tail Swing Radius: ~1.7 meters
  • Ground Clearance: ~350 mm
  • Track Width: 400 mm standard

Engine and Powertrain

  • Engine Model: Volvo D2.6H (Tier 3 compliant)
  • Rated Power Output: ~36.5 kW (49 hp) @ 2,000 rpm
  • Maximum Torque: ~200–220 Nm
  • Fuel Tank Capacity: ~80–90 liters
  • Travel Speed: 2.6–4.8 km/h
  • Swing Speed: ~9.5 rpm
  • Gradeability: Up to 30°

Hydraulic System

  • Main Pump Type: Variable displacement axial piston pump
  • Flow Rate: ~2 × 60–70 L/min
  • System Pressure: Up to 24.5 MPa
  • Hydraulic Oil Capacity: ~70–80 liters
  • Boom Cylinder Bore: ~90 mm
  • Arm Cylinder Bore: ~75 mm
  • Bucket Cylinder Bore: ~65 mm

Performance Metrics

  • Bucket Capacity: 0.11–0.14 m³ (SAE heaped)
  • Max Digging Depth: ~3.7–3.9 meters
  • Max Reach (Horizontal): ~5.9–6.1 meters
  • Max Dump Height: ~3.9–4.1 meters
  • Bucket Digging Force: ~38–40 kN
  • Arm Digging Force: ~25–28 kN

Cab and Operator Features

  • Cab Type: ROPS/FOPS certified (canopy or enclosed)
  • Display: LCD monitor with diagnostics and fuel tracking
  • Controls: Pilot joystick controls with auxiliary hydraulic circuit
  • Comfort: Adjustable seat, optional air-conditioning
  • Visibility: Wide glass area, LED work lights

Smart Features and Efficiency

  • Fuel Efficiency:
    • Auto idle and engine shutdown
    • Load-sensing hydraulics
  • Emissions Control: Tier 3 compliant (no DPF/SCR)
  • Telematics Ready: Volvo CareTrack (optional)
  • Transportability: Easily trailerable under 6-ton class

Attachments Compatibility

  • Standard Bucket: 0.11–0.14 m³
  • Optional Tools: Hydraulic breaker, auger, compactor, ripper
  • Quick Coupler: Manual or hydraulic options available

Refurbishment Scope

Refurbished EC60 units typically include:

  • Engine Overhaul: Cylinder head, injectors, turbo, seals
  • Hydraulic Restoration: Pump recalibration, valve block testing, hose replacement
  • Electrical Diagnostics: Monitor, sensors, wiring harness
  • Cab Reconditioning: Seat, joysticks, HVAC, repainting
  • Structural Repairs: Boom/bucket welding, bushing replacement, undercarriage rebuild

Overview of the Volvo EC60 Excavator

The Volvo EC60 is a compact, versatile excavator designed for both small and large jobs. Its combination of powerful hydraulics, efficient engine, and robust build makes it a perfect machine for working in confined spaces or on projects that require high precision. Whether it's digging, lifting, grading, or trenching, the EC60 delivers excellent results while offering impressive maneuverability.

Key Specifications of the Volvo EC60

  • Operating Weight: Approximately 6,000 kg (13,227 lbs)

  • Engine Power: Around 55 kW (73.8 hp)

  • Max Digging Depth: Up to 4.4 meters (14.4 feet)

  • Max Reach: Approximately 6.2 meters (20.3 feet)

  • Bucket Capacity: Ranges between 0.2 to 0.3 cubic meters (7.1–10.6 cubic feet)

  • Fuel Tank Capacity: About 110 liters (29 gallons)

  • Travel Speed: Up to 5.4 km/h (3.4 mph)

The EC60 offers excellent versatility for a range of jobs, particularly those in tight spaces where a larger machine may not fit. Its compact design and efficient use of power make it an optimal choice for smaller-scale projects that demand both precision and durability.

Engine and Fuel Efficiency

Powered by a Volvo D2.6E engine, the EC60 is engineered to provide reliable performance while maintaining low fuel consumption. This balance of power and efficiency helps reduce operating costs, making it a highly cost-effective choice for contractors.

  • Fuel Efficiency: The engine is optimized to offer high power output with low fuel consumption, reducing operational costs and making the EC60 an environmentally friendly option.

  • Reduced Emissions: Designed to meet stringent environmental standards, the EC60 operates with minimal emissions, ensuring compliance with modern regulations.

  • Reliable Power: The engine delivers consistent and smooth power, enabling the EC60 to tackle demanding tasks with ease while maintaining efficiency.

Hydraulic System and Performance

The Volvo EC60 is equipped with a powerful hydraulic system designed for precise control and efficient operation. The hydraulic system is the heart of the excavator’s performance, ensuring that it can handle a wide variety of attachments and tasks.

  • Hydraulic Efficiency: The EC60's hydraulic system is load-sensing, which means that it automatically adjusts the flow of hydraulic fluid based on the task at hand. This results in improved fuel efficiency and quicker response times for a more productive workday.

  • Precise Control: Whether it’s lifting, digging, or grading, the hydraulic system provides precise control, ensuring operators can complete tasks with high accuracy.

  • Attachment Versatility: The EC60 can be equipped with a range of attachments, such as buckets, augers, grapples, and breakers, to handle a variety of tasks, from construction to demolition and landscaping.

Durability and Build Quality

Volvo’s commitment to durability ensures that the EC60 is built to withstand harsh conditions while maintaining consistent performance over time. The machine’s components are designed to resist wear and tear, ensuring a long service life and minimizing the need for frequent repairs.

  • Durable Undercarriage: The EC60 features a durable undercarriage built for tough conditions. Its heavy-duty tracks are designed to provide stability and traction, even in difficult terrain, minimizing the risk of downtime.

  • Strong Frame and Boom: The frame and boom are constructed from high-strength steel to withstand heavy loads and rough working environments. This robust construction reduces the risk of damage and prolongs the excavator’s lifespan.

  • Low Maintenance: Thanks to its sturdy construction, the EC60 requires less maintenance than lighter-duty excavators, reducing overall operating costs.

Operator Comfort and Safety

Volvo prioritizes operator comfort and safety, and the EC60 is no exception. The spacious and ergonomically designed cab provides a safe, comfortable working environment for operators.

  • Ergonomic Cab Design: The EC60’s cab is designed with comfort in mind, offering an adjustable seat, intuitive controls, and easy-to-reach switches. The layout ensures that operators can work for extended hours without experiencing fatigue.

  • Safety Features: The EC60 is equipped with standard safety features, including ROPS (Roll-Over Protective Structure) and FOPS (Falling Object Protective Structure) to keep operators safe in hazardous working conditions. The cab also provides excellent visibility of the work area, enhancing safety during operation.

  • Reduced Noise and Vibration: Volvo’s engineers have designed the EC60 with noise and vibration-reducing features, ensuring that the machine operates quietly and smoothly, reducing operator fatigue.

Refurbished Volvo EC60: A Smart Investment

Opting for a refurbished Volvo EC60 offers several advantages for contractors seeking a high-quality excavator without the cost of a new machine. A refurbished unit is typically restored to original factory specifications, ensuring it delivers the same reliable performance as a new model.

  • Lower Cost: Refurbished models offer significant savings compared to new units, making them an ideal choice for contractors on a budget or those looking to expand their fleet without a large upfront investment.

  • Quality Restoration: Refurbished Volvo EC60 excavators undergo a thorough inspection and repair process. Key components such as the engine, hydraulics, undercarriage, and electrical systems are checked, repaired, or replaced to ensure that the machine is in excellent working condition.

  • Warranty and Support: Many refurbished machines come with a warranty, providing added peace of mind. Additionally, after-sales support and parts availability ensure that you have access to assistance if any issues arise.

Maintenance Tips for the Volvo EC60

To get the most out of your Volvo EC60, regular maintenance is essential. Below are some maintenance tips that can help extend the life of your machine and ensure it operates at peak performance.

  • Engine Care: Keep the engine oil at the recommended level and change the oil and filters regularly. Inspect the air filters to ensure optimal engine performance and replace them when necessary.

  • Hydraulic System: Regularly check the hydraulic fluid levels and inspect for any leaks. Keeping the system clean and well-maintained ensures that it continues to perform efficiently.

  • Track and Undercarriage Maintenance: Inspect the tracks regularly for wear and ensure they are properly tensioned. Clean the undercarriage to prevent debris buildup that could affect performance.

  • Safety Inspections: Regularly check safety features such as ROPS and FOPS, along with the condition of the cab. Ensuring that the cab remains free of debris and is properly maintained is critical for operator safety.

Conclusion

The Volvo EC60 is a powerful and versatile compact excavator designed for a wide range of applications. Its efficient engine, durable build, and high-performance hydraulic system make it an excellent choice for both small and large-scale projects. A refurbished Volvo EC60 excavator offers a cost-effective solution for contractors looking for a reliable machine at a lower price. With proper maintenance and care, the EC60 can provide many years of dependable service, making it a valuable addition to any contractor’s fleet.

Our Commitment

  1. 2 years / 4000 hours warranty.
  2. EPA certified.
  3. No sweatshop labor.
