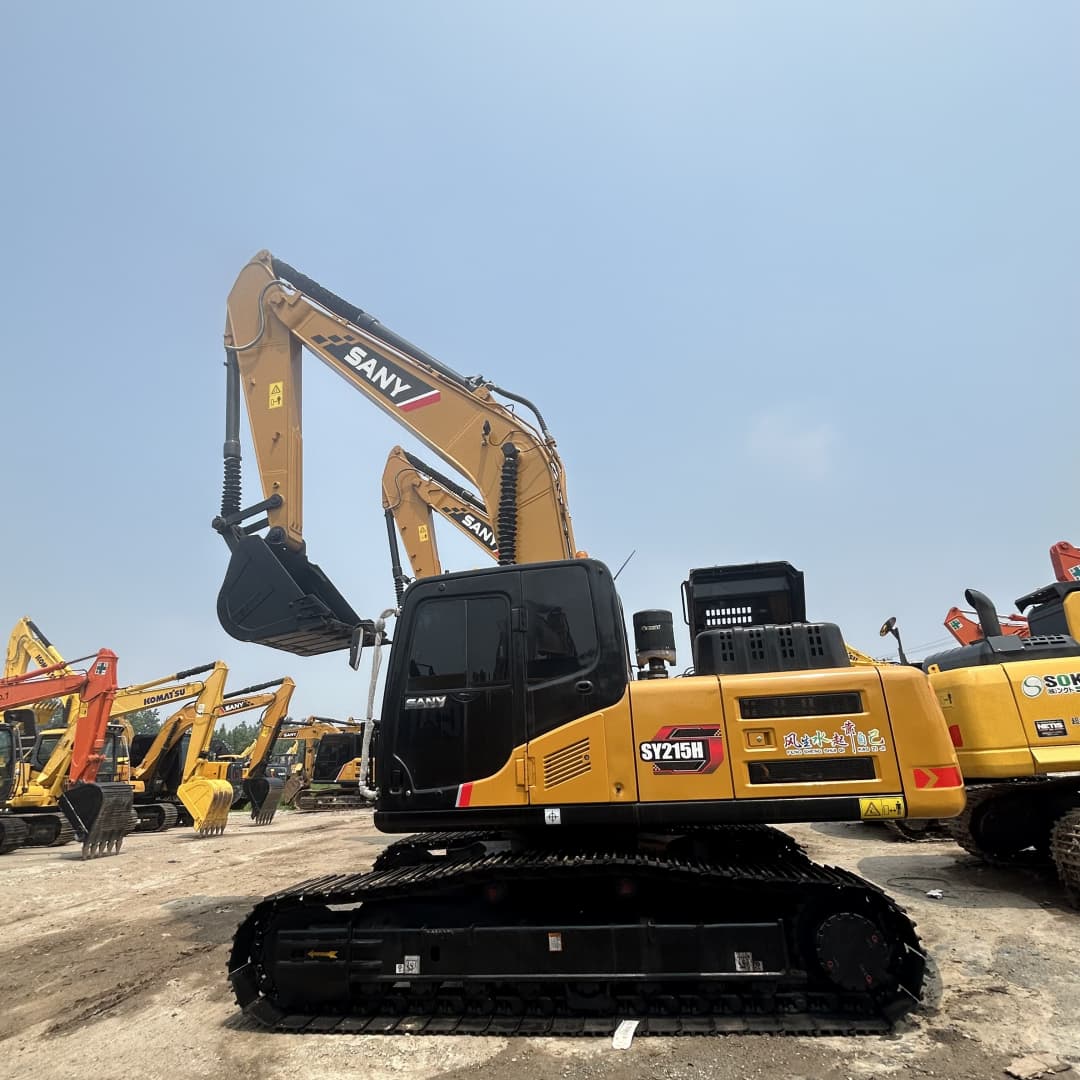

Refurbished SANY SY215 Excavator

The SY215 excavator is one of SANY’s most widely sold and field-proven models, designed to dominate the 21-ton class with a blend of power, precision, and cost-efficiency. First introduced in the late 2000s, the SY215 quickly became a cornerstone of SANY’s global expansion, especially in markets like Southeast Asia, Africa, and South America. Its success helped SANY surpass global competitors in unit sales by the early 2020s, with the SY215 accounting for a significant portion of the company’s 100,000+ annual excavator deliveries.

Honestly, it's almost impossible to buy a brand new excavator from China. They either don't exist or are made in China. If a Chinese seller tells you their Caterpillar/Komatsu/Volvo/Kobelco/Hitachi is brand new, they're lying. Therefore, a refurbished excavator is your best bet.

Built for versatility, the SY215 is used in everything from urban foundation work to rural road building, quarrying, and demolition. Its reputation for fuel economy and low maintenance costs makes it a favorite among contractors and rental fleets alike.

Core Specifications of the Refurbished SY215

Refurbished SY215 units typically retain the original performance envelope, with key systems restored or replaced. Common specifications include:

Operating Weight and Dimensions

  • Operating Weight: 21,000–21,900 kg
  • Overall Length: ~9.6–9.8 meters
  • Overall Width: ~2.99 meters
  • Overall Height: ~3.1 meters
  • Ground Clearance: ~470 mm
  • Tail Swing Radius: ~2.85 meters
  • Track Width: 600 mm standard

Engine and Powertrain

  • Engine Model: Cummins QSB6.7 or SANY-branded turbo diesel
  • Rated Power Output: 155–163 hp (116–122 kW)
  • Maximum Torque: ~800–850 Nm @ 1,500 rpm
  • Fuel Tank Capacity: ~400–450 liters
  • Gradeability: Up to 35°
  • Travel Speed: 3.5–5.5 km/h
  • Swing Speed: ~11 rpm

Hydraulic System

  • Main Pump Type: Variable displacement axial piston pump
  • Flow Rate: ~2 × 210 L/min
  • System Pressure: Up to 34.3 MPa
  • Hydraulic Oil Capacity: ~260 liters
  • Boom Cylinder Bore: ~130 mm
  • Arm Cylinder Bore: ~115 mm
  • Bucket Cylinder Bore: ~105 mm

Performance Metrics

  • Bucket Capacity: 0.9–1.2 m³
  • Max Digging Depth: ~6.5 meters
  • Max Reach (Horizontal): ~10.1 meters
  • Max Dump Height: ~6.8 meters
  • Bucket Digging Force: ~145–150 kN
  • Arm Digging Force: ~110–120 kN

Cab and Operator Features

  • Cab Type: ROPS/FOPS certified
  • Display: LCD monitor with diagnostics and fuel tracking
  • Controls: Ergonomic joysticks with customizable sensitivity
  • Comfort: Air-conditioned cab, adjustable suspension seat
  • Visibility: Panoramic glass with optional rear-view camera

Smart Features and Efficiency

  • Eco Mode: Adaptive engine output for fuel savings
  • Auto Idle: Reduces RPM during inactivity
  • Centralized Lubrication: Optional for reduced maintenance
  • Telematics Ready: Some refurbished units support remote diagnostics

Attachments Compatibility

  • Standard Bucket: 0.9–1.2 m³ earth or rock bucket
  • Optional Tools: Hydraulic breaker, grapple, compactor, ripper
  • Quick Coupler: Hydraulic or manual options available

Refurbishment Scope

Refurbished SY215 units typically include:

  • Engine overhaul (injectors, turbo, seals)
  • Hydraulic pump recalibration or replacement
  • Electrical system rewiring and sensor testing
  • Cab restoration (seat, controls, HVAC)
  • Structural repairs (boom welding, bushing replacement, repainting)

These specs make the SY215 ideal for trenching, loading, and moderate rock excavation.

Refurbishment Scope and Quality Indicators

Refurbished SY215 excavators vary in quality depending on the supplier and original usage. A high-quality refurbishment typically includes:

  • Engine Overhaul: Turbocharger cleaning, injector replacement, cylinder head inspection
  • Hydraulic System Restoration: Pump recalibration, valve block testing, hose replacement
  • Undercarriage Rebuild: Track link replacement, roller inspection, sprocket wear correction
  • Cab Reconditioning: Seat replacement, joystick recalibration, monitor diagnostics
  • Structural Repairs: Boom and arm crack welding, bushing replacement, repainting

Units with fewer than 2,000 operating hours and no history of major failure are often labeled “90% new.” Some suppliers offer test reports showing no oil leakage, stable hydraulic pressure, and full-function diagnostics.

Smart Features and Operator Comfort

Modern SY215 models—and well-refurbished units—include:

  • Eco Mode: Reduces fuel consumption during light-duty operations
  • Auto Idle: Automatically lowers engine RPM during inactivity
  • Real-Time Monitoring: LCD display with fault codes, fuel usage, and maintenance alerts
  • ROPS/FOPS Cab: Certified for rollover and falling object protection
  • Ergonomic Layout: Adjustable seat, panoramic visibility, low vibration controls

These features contribute to reduced operator fatigue and improved jobsite productivity.

Attachments and Versatility

The SY215 supports a wide range of attachments:

  • Standard Bucket: 0.9–1.2 m³ earth or rock bucket
  • Hydraulic Breaker: For demolition and concrete removal
  • Grapple: For forestry and scrap handling
  • Compactor: For roadwork and trench stabilization
  • Ripper: For hard soil and frozen ground

Quick coupler systems allow fast switching between tools, making the SY215 suitable for multi-role deployment.

Market Trends and Pricing

Refurbished SY215 excavators are widely available in China, especially in Shanghai, where dealers maintain inventories of thousands of units. Pricing typically ranges from ¥320,000 to ¥440,000 RMB ($44,000–$61,000 USD), depending on condition, attachments, and refurbishment level.

Buyers should verify:

  • Operating Hours: Lower hours suggest less wear
  • Component Authenticity: Original SANY or Cummins parts preferred
  • Test Reports: Confirm hydraulic performance and engine health
  • Warranty Terms: Some suppliers offer 3–6 month limited warranties

Field Story: A Comeback in the Mekong Delta

In 2022, a construction firm in Vietnam acquired a refurbished SY215C for a canal dredging and embankment reinforcement project. The machine had previously worked in a limestone pit and was restored with a new hydraulic pump and rebuilt undercarriage. Over the next 1,500 hours, the excavator handled trenching, slope cutting, and material loading without major issues. The firm reported fuel savings of 10% compared to its older Kobelco SK210 and praised the SY215’s responsiveness in wet terrain.

Recommendations for Buyers

  • Inspect Before Purchase: Check engine, hydraulics, and undercarriage in person
  • Request Maintenance Records: Even partial logs help assess prior usage
  • Test Attachments: Ensure compatibility and performance
  • Choose Reputable Suppliers: Prefer those with export licenses and transparent practices
  • Consider Telematics: Some refurbished units support remote diagnostics

Conclusion

The refurbished SANY SY215 excavator offers a compelling mix of power, efficiency, and affordability. With proper inspection and sourcing, it can serve as a reliable workhorse across construction, mining, and infrastructure projects. For contractors seeking performance without the premium of a new unit, the SY215 stands as a smart investment with proven field results.
